INSTALLATION GUIDE

Stainless Steel Micro-Mesh Gutter Guards

A hand holding a smartphone, screen displaying a pattern lock with three connected dots, as if unlocking the device in an Amazon forest setting with pine needles scattered around.

01

MEASURE

Use our innovative measure app to determine the amount of gutter guards you will need.

A hand holds a bunch of leafy vegetables over a container filled with similar leaves, possibly placing or removing them—much like how Raptor Gutter Guard with V-Bend Technology keeps debris out. Available on Amazon.

02

CLEAN

Before you install, clean out any existing debris. Just think - It’s the last time you’ll have to do it!

Line drawing of one hand cutting along a line on paper with scissors, while the other holds the sheet steady—ideal for trimming your Raptor Gutter Guard or applying V-Bend Technology.

03

CUT

Simply cut as needed to adapt to corners, miters and any section length needed.

Line drawing showing a power drill fastening a metal strip, such as the Raptor Gutter Guard by Gutterglove, onto the edge of a corrugated metal roof panel. The drill secures screws into the strip positioned on top of the panel’s ridges. Available on Amazon.

04

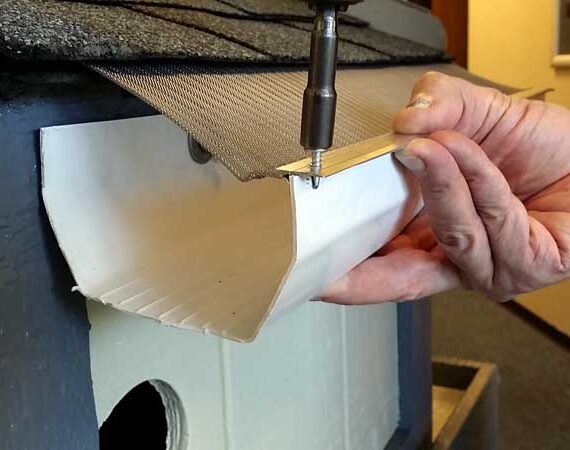

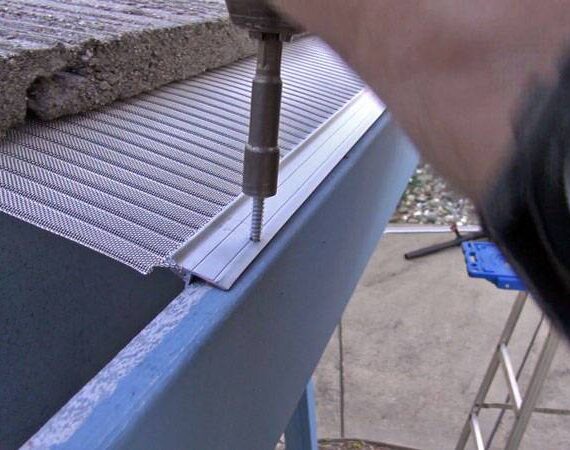

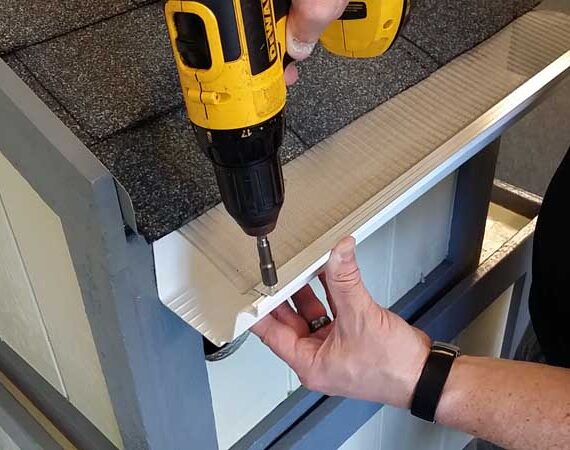

SECURE

Securely attach to your gutters using the included self-tapping screws.

Product Specs

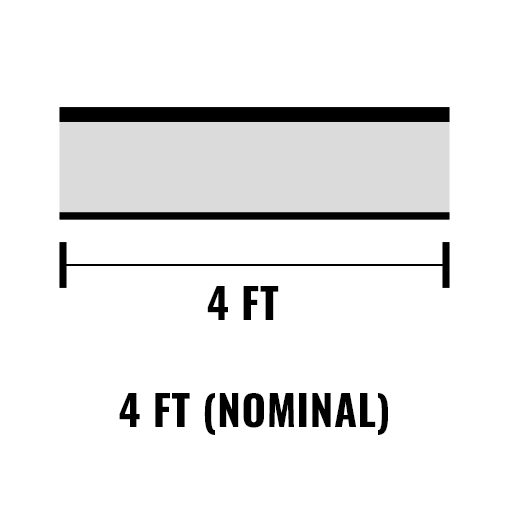

A diagram showing a horizontal rectangular object labeled 4 FT wide, with 4 FT (NOMINAL) written below, highlighting the nominal width measurement of the Gutterglove guard designed to block pine needles.

Piece Length

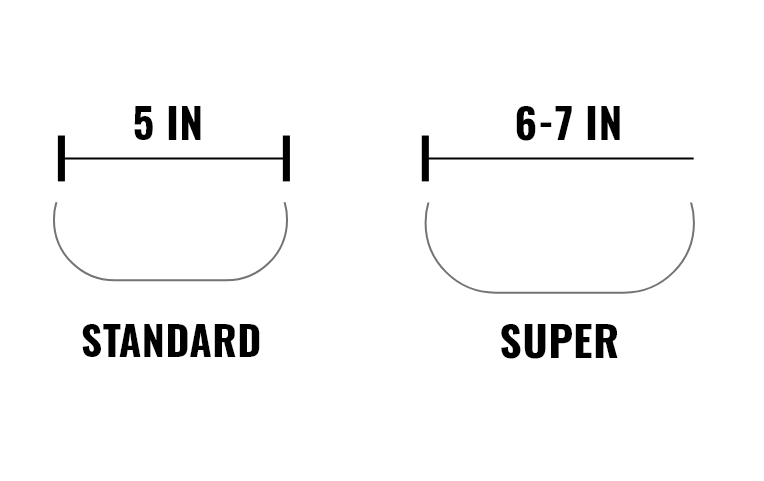

Diagram comparing two sizes: a Standard size with a width of 5 inches and a Super size with a width of 6–7 inches, each shown with labeled brackets above curved lines—featuring Raptor Gutter Guard’s V-Bend Technology.

Gutter Width

Determine Your Gutter Size

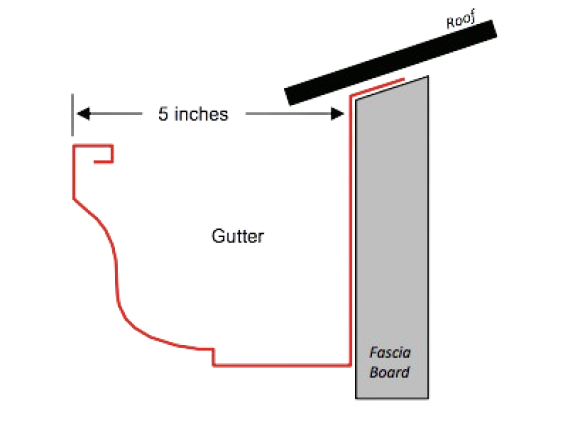

You’ll need to measure your gutters to determine the size of Raptor Gutter Guard to purchase.  To get the size of your gutter, measure the top of the gutter, starting at the front top outer lip, straight back to the fascia, just under the roof line.
Our standard version is 5 IN. wide and designed to fit on gutters 5 IN. or smaller. While our super version is 6 IN. wide and will fit 6 IN. and 7 IN. gutters.
A diagram shows a roof edge, fascia board, and gutter. The distance from the roof edge to the gutter is labeled as 5 inches. The fascia board supports the gutter, which features Gutterglove V-Bend Technology to help keep out pine needles.

If your gutter measures 5 IN. wide or smaller, you’ll need the Raptor Standard Gutter Guard Kit.

Buy Standard 5 IN. Kit
Diagram showing a cross-section of a roof with a Gutterglove gutter. The gutter, designed to block pine needles, is attached to a fascia board, and the roof edge extends 6 inches beyond the fascia above the gutter. Labels indicate Roof, Gutter, and Fascia Board.

If your gutter measures 6 IN. – 7 IN., you’ll need the Raptor Super Gutter Guard Kit.

Buy Super 6 IN. Kit

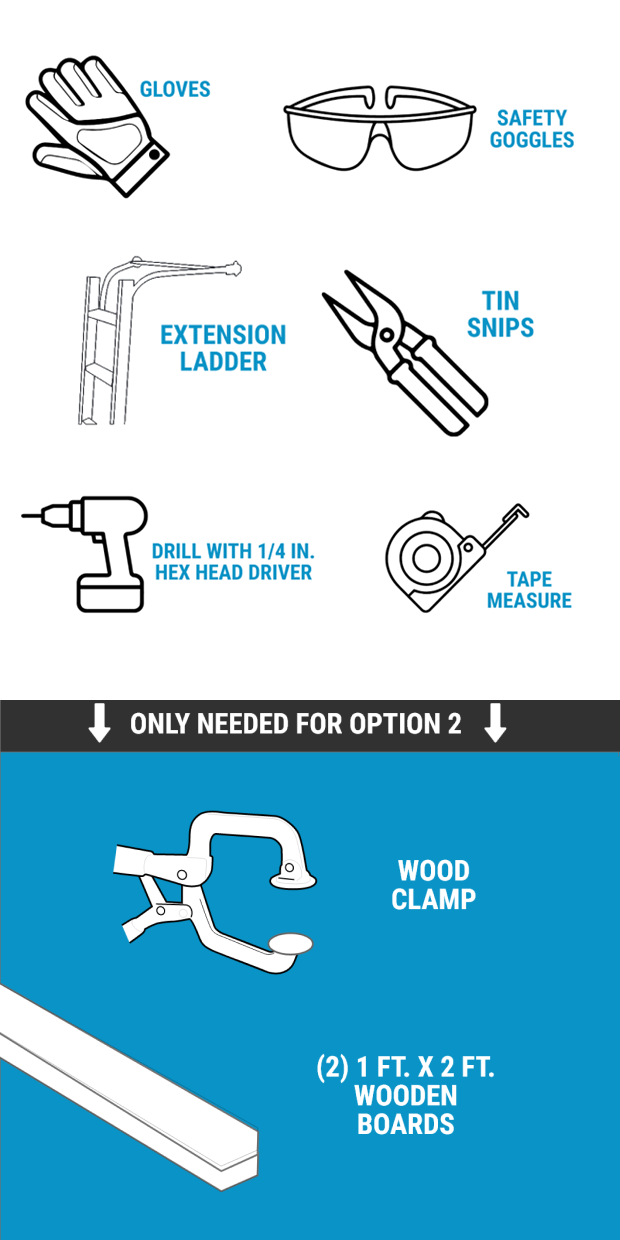

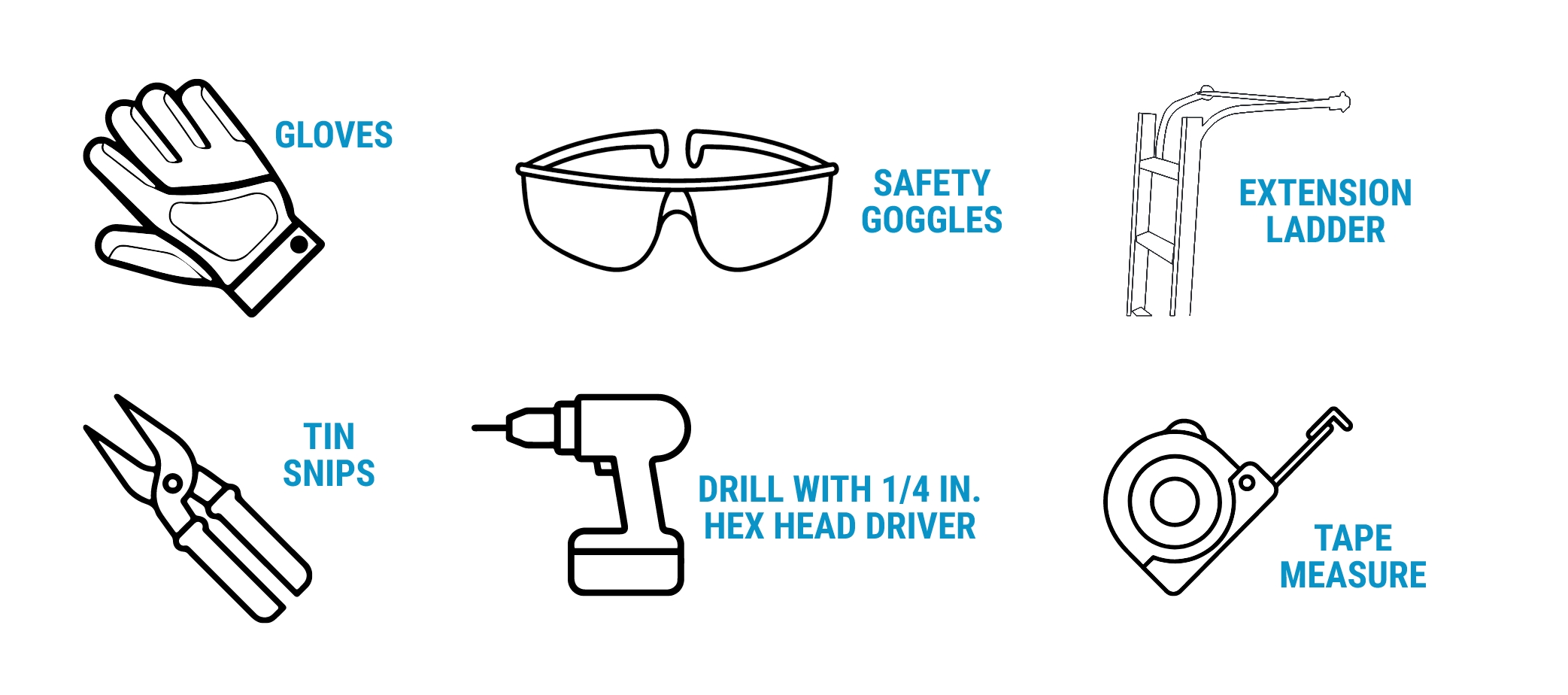

Recommended Tools

Illustration showing tools: gloves, safety goggles, extension ladder, tin snips, drill with hex head driver, tape measure, and for option 2, a wood clamp and two wooden boards. Ideal for installing Raptor Gutter Guard to keep out pine needles.

Installation Videos

Blue graphic features a stainless steel micro-mesh gutter guard with text: PRE-INSTALLATION SETUP and STAINLESS STEEL MICRO-MESH. Showcases Raptor Gutter Guard’s V-Bend Technology, with the Raptor Gutter Guard logo at the bottom.

Pre-Installation

A blue and black graphic featuring a stainless steel micro-mesh gutter guard with V-Bend Technology and the text “Guidelines for a Proper Installation.” The Raptor Gutter Guard logo appears at the bottom.

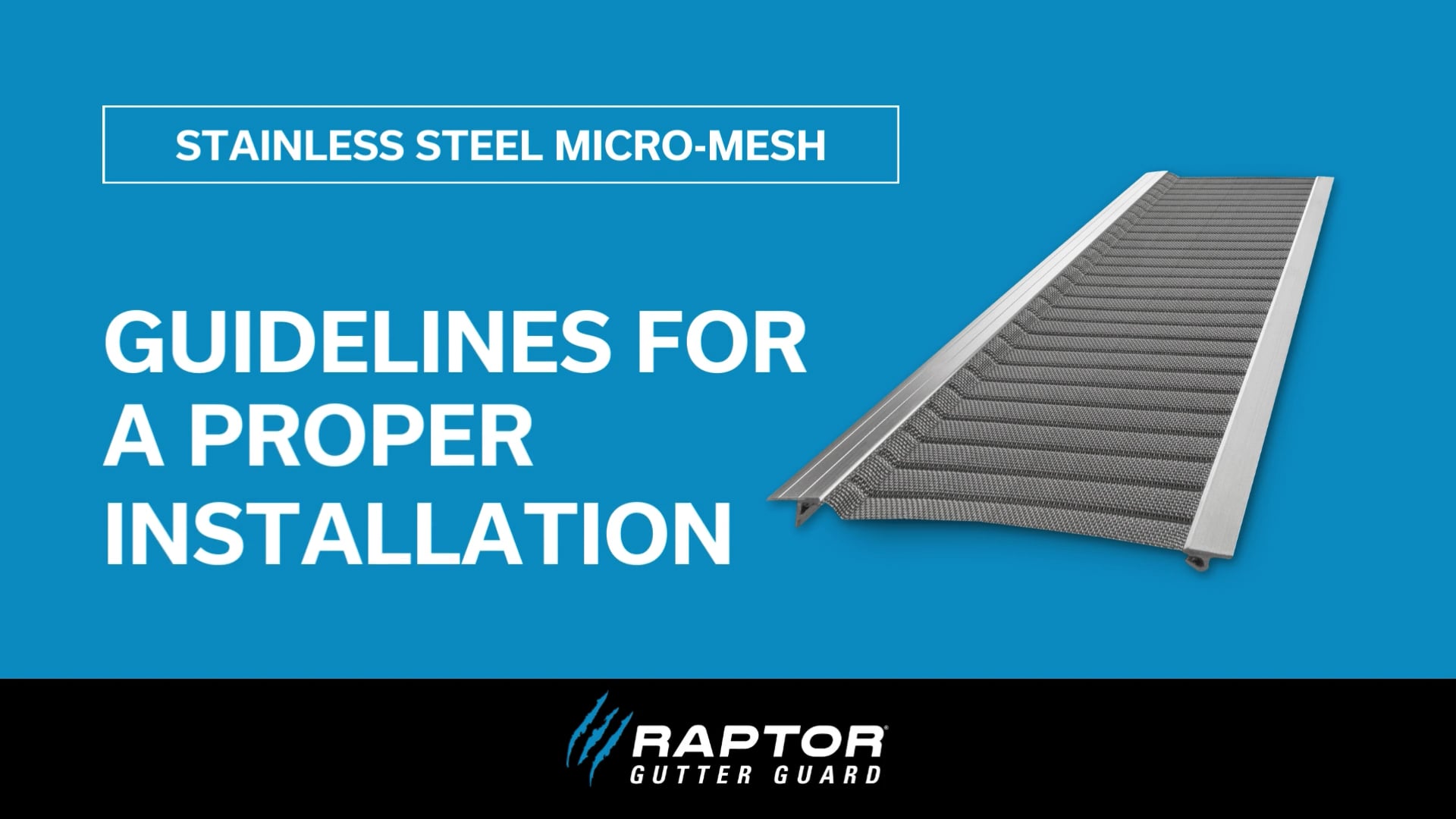

Guidelines For A Proper Installation

A stainless steel micro-mesh gutter guard featuring V-Bend Technology is shown on a blue background with the text Determining the Slope and Stainless Steel Micro-Mesh. The Raptor Gutter Guard logo appears at the bottom.

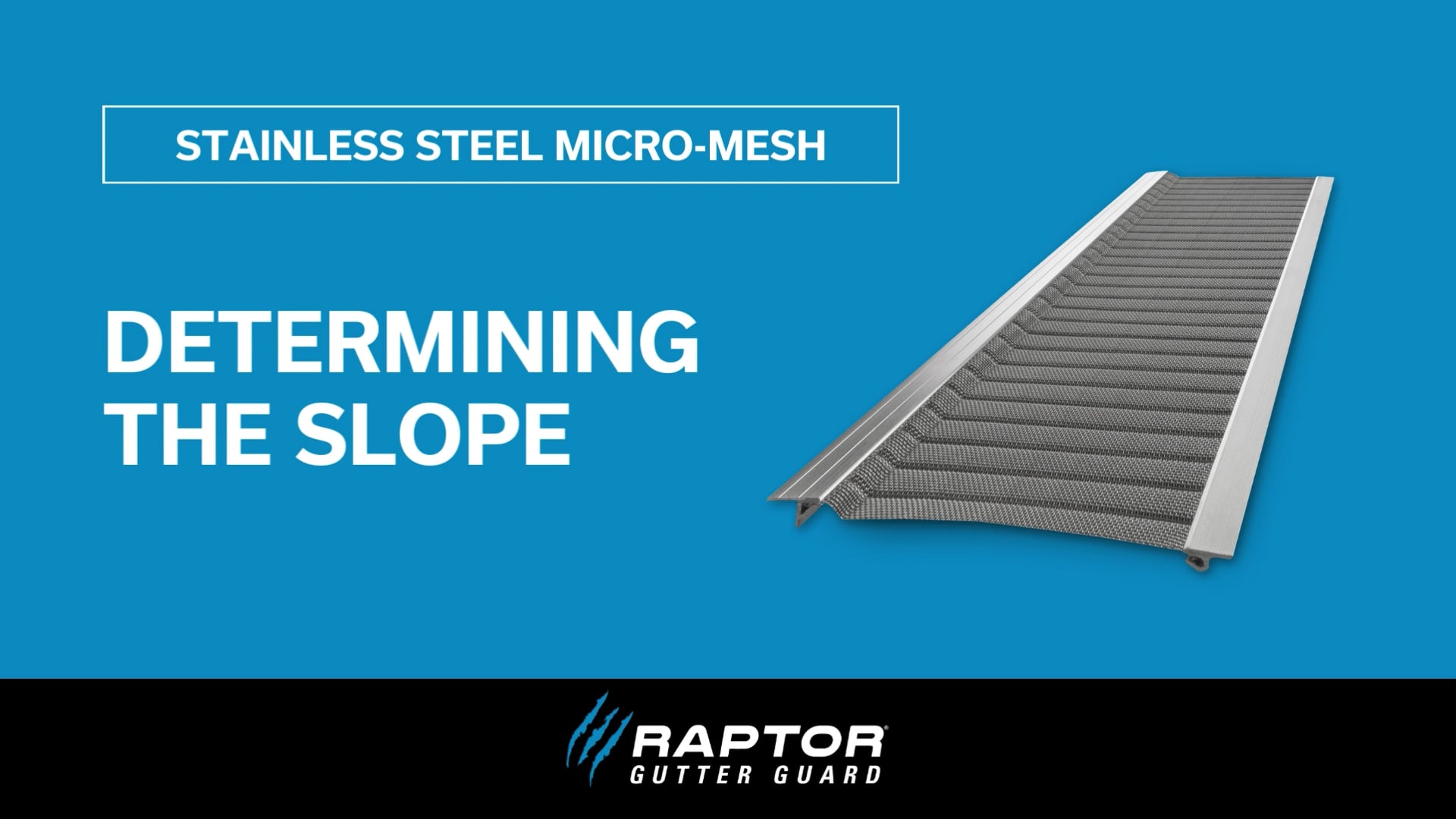

Determining The Slope

Advertisement for Raptor Gutter Guard shows a stainless steel micro-mesh gutter cover blocking pine needles on a blue background, with the text Flexible Installation and the Raptor Gutter Guard logo at the bottom.

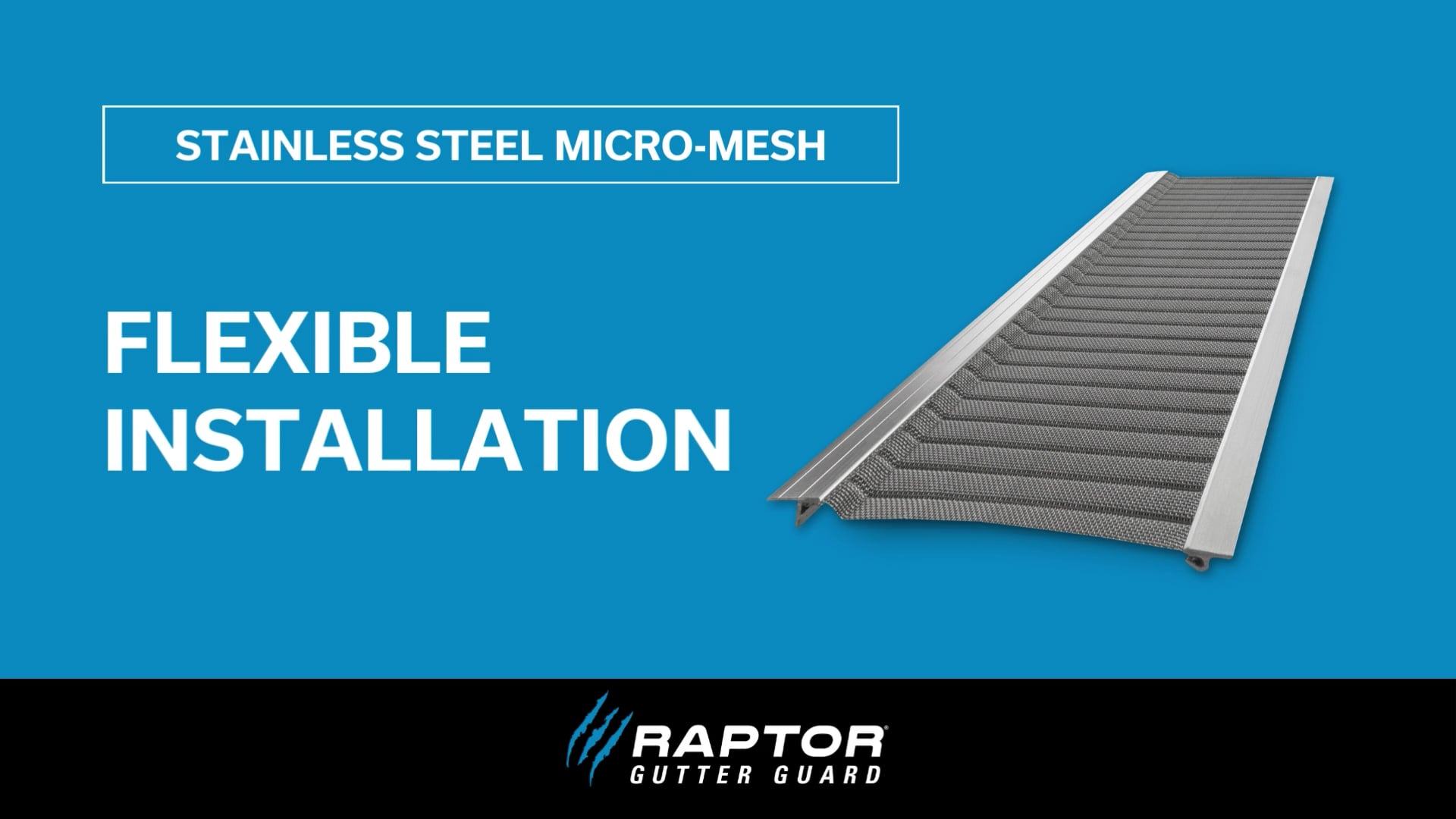

Flexible Installation

Image showing a stainless steel micro-mesh gutter guard slightly bent on a blue background, highlighting its effectiveness against pine needles. Raptor Gutter Guard logo appears at the bottom. Available on Amazon.

Bending the Mesh

Instructional graphic showing a stainless steel micro-mesh gutter guard blocking pine needles on a blue background with text: Cutting, Securing, and Joining Sections. Raptor Gutter Guard and Gutterglove logos appear at the bottom. Available on Amazon.

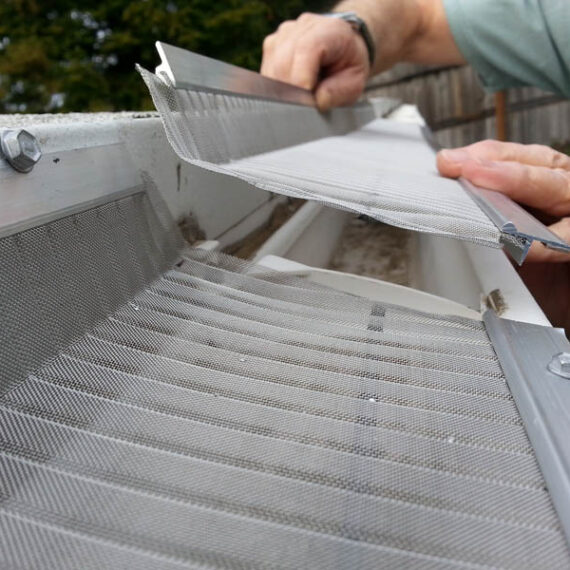

Cutting, Securing, And Joining Sections

A stainless steel micro-mesh inside miter gutter guard featuring V-Bend Technology is displayed on a blue background with the text

Inside Miters

A stainless steel micro-mesh outside miter gutter guard is shown against a blue background with the text Stainless Steel Micro-Mesh and Outside Miters. The Raptor Gutter Guard logo appears at the bottom, highlighting quality protection.

Outside Miters

A section of stainless steel micro-mesh gutter guard end cap featuring V-Bend Technology is shown on a blue background. Text reads Stainless Steel Micro-Mesh End Caps, with the Raptor Gutter Guard logo at the bottom.

End Caps

Stainless steel micro-mesh gutter guard featuring V-Bend Technology on a blue background, with the text “COMPLETING THE JOB” and “RAPTOR GUTTER GUARD” at the bottom—ideal for blocking pine needles.

Completing the Job

Stainless steel micro-mesh gutter guard by Raptor Gutter Guard, shown on a black background with the words STAINLESS STEEL MICRO-MESH and INSTALLATION in bold letters. Available on Amazon.

Full Installation

Blue graphic features a stainless steel micro-mesh gutter guard with text: PRE-INSTALLATION SETUP and STAINLESS STEEL MICRO-MESH. Showcases Raptor Gutter Guard’s V-Bend Technology, with the Raptor Gutter Guard logo at the bottom.

Pre-Installation

A blue and black graphic featuring a stainless steel micro-mesh gutter guard with V-Bend Technology and the text “Guidelines for a Proper Installation.” The Raptor Gutter Guard logo appears at the bottom.

Guidelines For A Proper Installation

A stainless steel micro-mesh gutter guard featuring V-Bend Technology is shown on a blue background with the text Determining the Slope and Stainless Steel Micro-Mesh. The Raptor Gutter Guard logo appears at the bottom.

Determining The Slope

Advertisement for Raptor Gutter Guard shows a stainless steel micro-mesh gutter cover blocking pine needles on a blue background, with the text Flexible Installation and the Raptor Gutter Guard logo at the bottom.

Flexible Installation

Image showing a stainless steel micro-mesh gutter guard slightly bent on a blue background, highlighting its effectiveness against pine needles. Raptor Gutter Guard logo appears at the bottom. Available on Amazon.

Bending The Mesh

Instructional graphic showing a stainless steel micro-mesh gutter guard blocking pine needles on a blue background with text: Cutting, Securing, and Joining Sections. Raptor Gutter Guard and Gutterglove logos appear at the bottom. Available on Amazon.

Cutting, Securing, And Joining Sections

A stainless steel micro-mesh inside miter gutter guard featuring V-Bend Technology is displayed on a blue background with the text

Inside Miters

A stainless steel micro-mesh outside miter gutter guard is shown against a blue background with the text Stainless Steel Micro-Mesh and Outside Miters. The Raptor Gutter Guard logo appears at the bottom, highlighting quality protection.

Outside Miters

A section of stainless steel micro-mesh gutter guard end cap featuring V-Bend Technology is shown on a blue background. Text reads Stainless Steel Micro-Mesh End Caps, with the Raptor Gutter Guard logo at the bottom.

End Caps

Stainless steel micro-mesh gutter guard featuring V-Bend Technology on a blue background, with the text “COMPLETING THE JOB” and “RAPTOR GUTTER GUARD” at the bottom—ideal for blocking pine needles.

Completing the Job

Stainless steel micro-mesh gutter guard by Raptor Gutter Guard, shown on a black background with the words STAINLESS STEEL MICRO-MESH and INSTALLATION in bold letters. Available on Amazon.

Full Installation

Download Install Guide

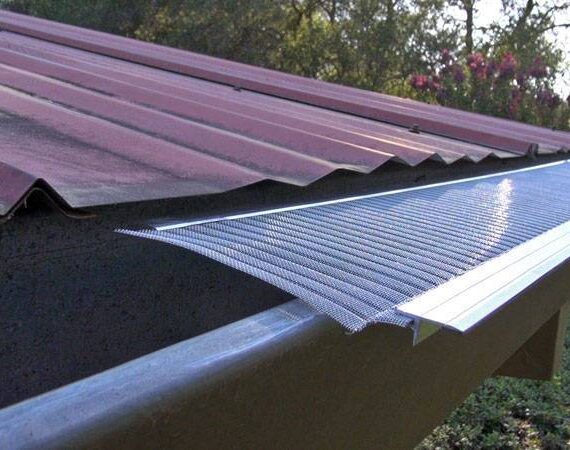

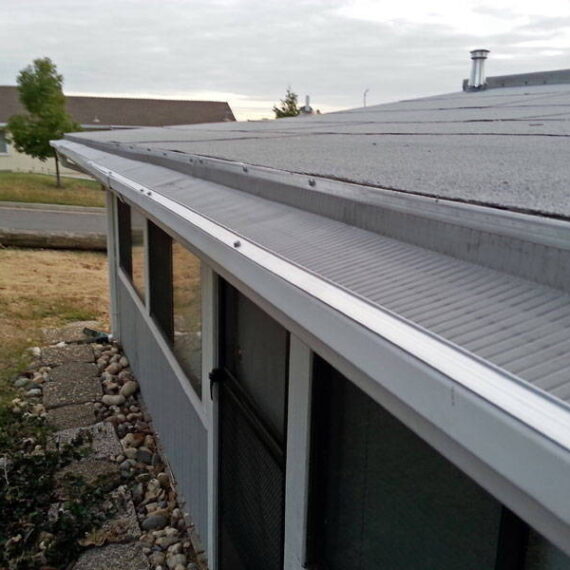

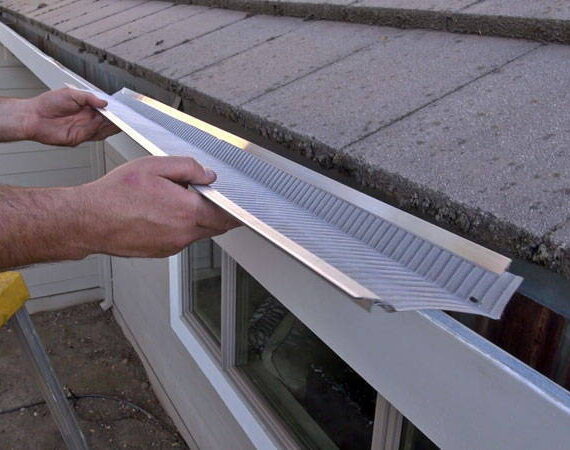

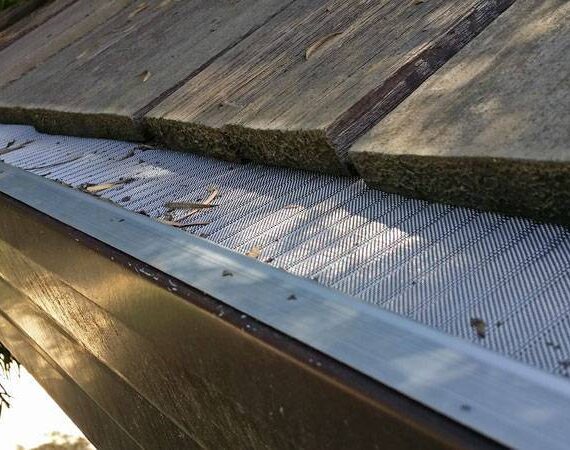

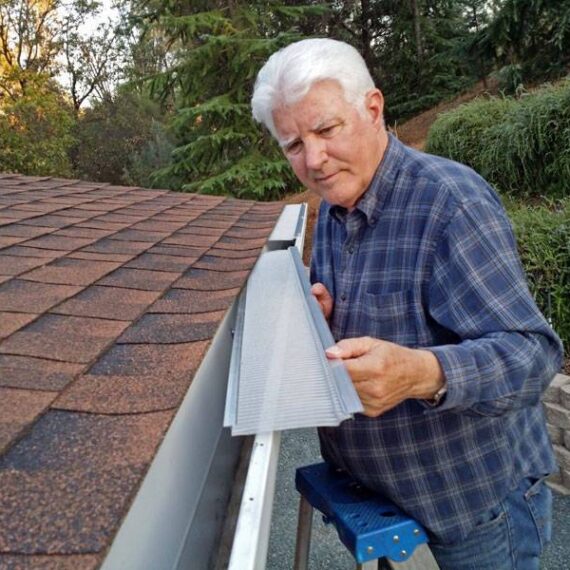

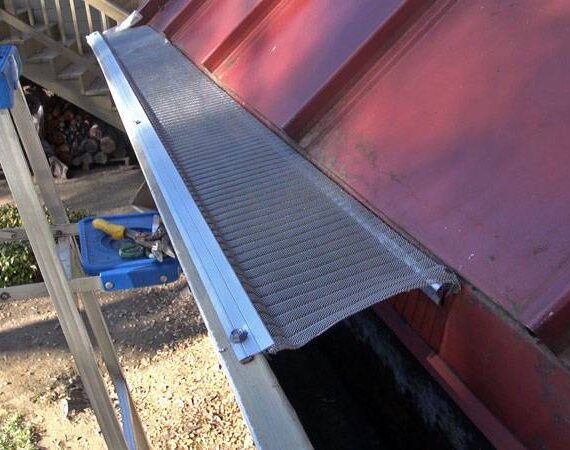

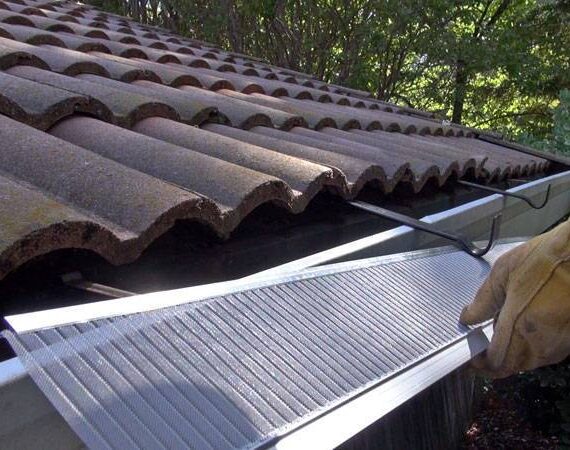

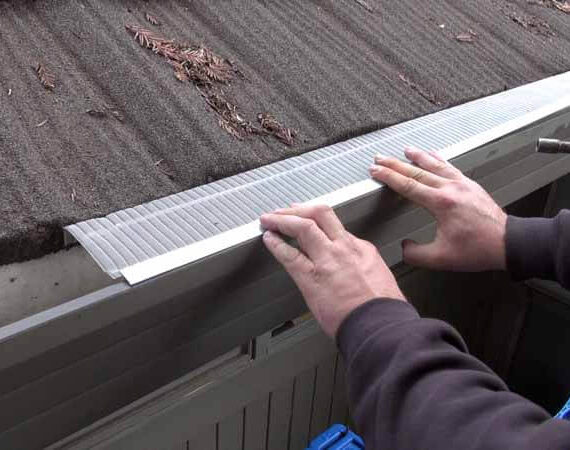

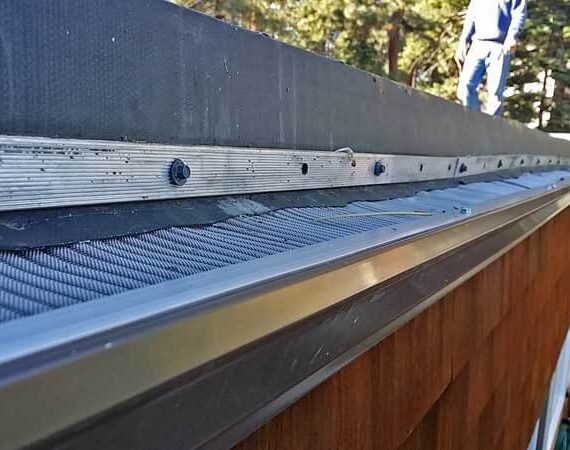

Gutter-to-Roof
Configuration

Have Questions?

Reach out to the Raptor team today so we can provide you the resources you need to install your gutter guards!

DISCLAIMER: Independent professional contractors who install our products are not our employees or official representatives. We do not warranty the installation services of the contractors. We are not responsible or liable for installation services provided by professional contractors and any contract for installation services is with the professional contractor alone.
